FR168W

FR-W02

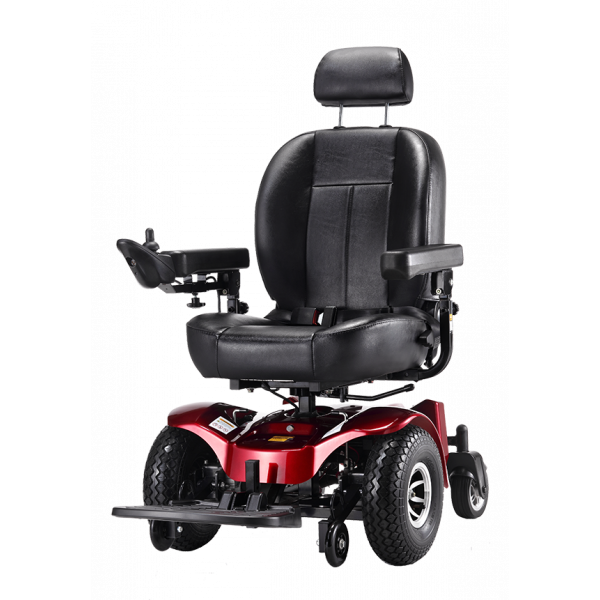

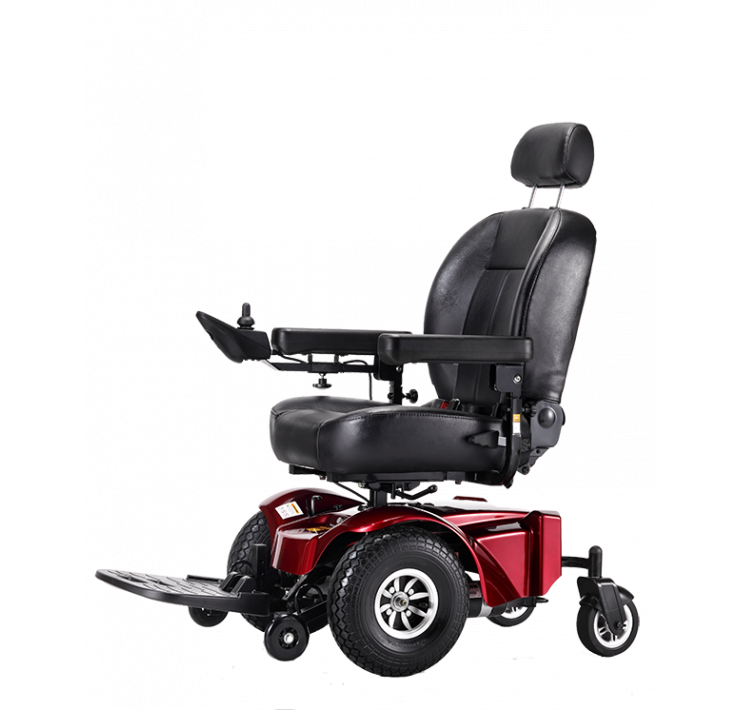

The strong and compact W02 chassis is equipped with a fully suspension system.
*
F
*

FR168W

FR-W02

Available in colors

Precision turning

Sensitive controls

Luxurious comfort

Consultation list 0

Maximum range

*
25km

Specifications

  • Overall Length

    119.4 cm / 47"

  • Overall Width

    67.5 cm / 26.6"

  • Max. Safe Slope

    6 degree

  • Max. Speed

    6.4 kph / 4 mph

  • Ground Clearance

    9.2 cm / 3.6"

  • Turning Radius

    53.2 cm / 21"

  • Range Per Charge

    25.3 km / 15.8 mile (500 lb)

  • Total Weight w/o Batteries

    70 kg / 154 lb

  • Battery (each)

    15 kg / 33 lb

  • Weight Capacity

    213 kg / 470 lb

  • Colors

    Red

Note:Range varies with weight, terrain, temperature, battery condition etc. and is subject to manufacturing tolerances. Your battery will require a period of "breaking in" before they will reach their optimum capacity (up to 20 charge, discharge cycles can be expected) before full range is experienced.

DOWNLOAD

For more detailed information, please download the FreeRider manual.

*
